tibia implant real model for training 3D मॉडल

the individual tibia implant is designed for hip replacement and is used in combination with standard or individual acetabulum components.

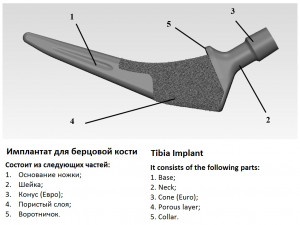

it consists of the following parts:
1. base;
2. neck;
3. cone (euro);
4. porous layer;
5. collar.

the implant design takes into account the following features:

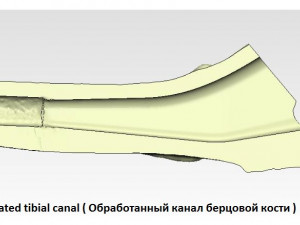

1. the femur will be treated before the implant is installed;
2. when the femoral neck is sawdust, the large trochanter is preserved.

mounting parameters:
1. planting the "press fit" cup;

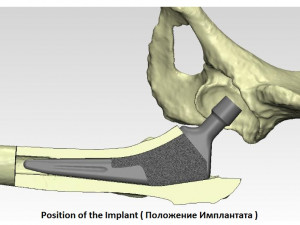

2. the implant is installed before the collar comes into contact with the sawdust of the femur.

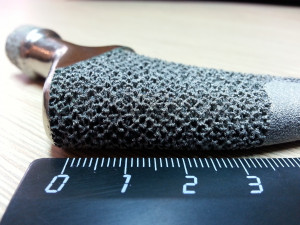

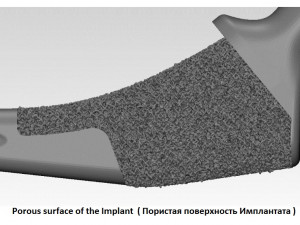

in places where the implant comes into contact with the pelvic bone, its surface is porous.

technical characteristics of porosity:
the name of the porosity element is a dodecahedron
the size of the porosity element is 1.5×1.5×1.5 mm (random up to 30%)
the diameter of the rib of the porosity element is 0.4 mm
the arrangement of graphs is orthogonal प्रिंट के लिए तैयार: नहीं
